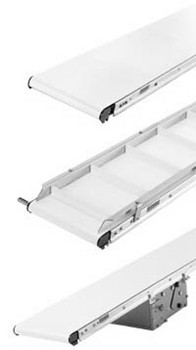

Belt Conveyors / Dorner 2200/2700 Belt Conveyor

  • Reliable, high quality precision belt conveyors
  • Fit in tight spaces, very low profile (less than 2”), can push belt
  • Can transfer tiny parts from one belt conveyor to another (8mm nose bar)
  • Delivery in a few days (2 days possible)
  • T slot to easily mount control devices
  • Endless V-guided belts eliminate tracking problems
  • 1 ¾" to 24" wide, 18" to 18' long (2200)
  • 8" to 36" wide, 2' to 24' long (2700)
  • Flat and cleated belts for most applications
  • High quality and looks it
  • Dustpruf option without T-slot
  • Certified to Class 100 (ISO 5) cleanroom (2200)

Belt Conveyors / Dorner 3200 Belt Conveyor

  • Reliable, high quality precision belt conveyors
  • Two T slots to easily mount control devices
  • Delivery in a few days
  • Endless V-guided belt eliminates tracking problems
  • 3 ¾" to 48" wide, 3' to 99' long
  • Flat and cleated belts for most applications
  • High load (1000lbs) and high speed (420 FPM)
  • High quality and looks it
  • Certified to Class 100 (ISO 5) cleanroom

Dorner Precision Move 2200 and 3200 Belt Conveyors

  • Servo ready
  • High load, high speed belt conveyors
  • Cogged conveyor belts for fast, no slip indexing
  • Very accurate part positioning
  • 1 ¾" wide, 18" long up to 18" wide, 50' long
  • 3200 precision move conveyor belts can have threaded inserts or pallet mounting bars
  • All the other benefits of Dorner 2200 and 3200 belt conveyors



To build a virtual Dorner conveyor please click here. The link will take you to the Dorner product configurator and CAD library. We can then quickly get back to you with a quote.

Registration is required the first time.



We can do:
Magnetic conveyors (upside down parts)
Vacuum conveyors
Backlit Conveyors for vision systems
Metal free zones
Common drive conveyors
Lane dividing
Lane guiding
Fixture conveyors (Product Nests)
Electrically conductive
Oil and chip resistant
Small bottle transfers
90 Degree transfers
Counting
Indexing
Multiple belt conveyors
Servo drives
Lift Gates
Pivot conveyors
Color contrasting
Low or High friction belts



 Recent Project:  Roll Turner Systems

These roll turner systems automatically turn wrapped paper towels 90 degrees.  They turn single, double or triple packs at 150 packs per minute.  One customer had experienced multiple bearing failures with a competitor's low profile conveyors.  We used rugged Dorner 3200 conveyors on stiff Flexlink aluminum frames for this multiple system order.  They replace bump turns and air blasts to save huge amounts of compressed air.



 For more information on Dorner products, click here.



We strongly recommend that as a first step you contact us at (800) 333-0162 or Email Us to discuss your application.
